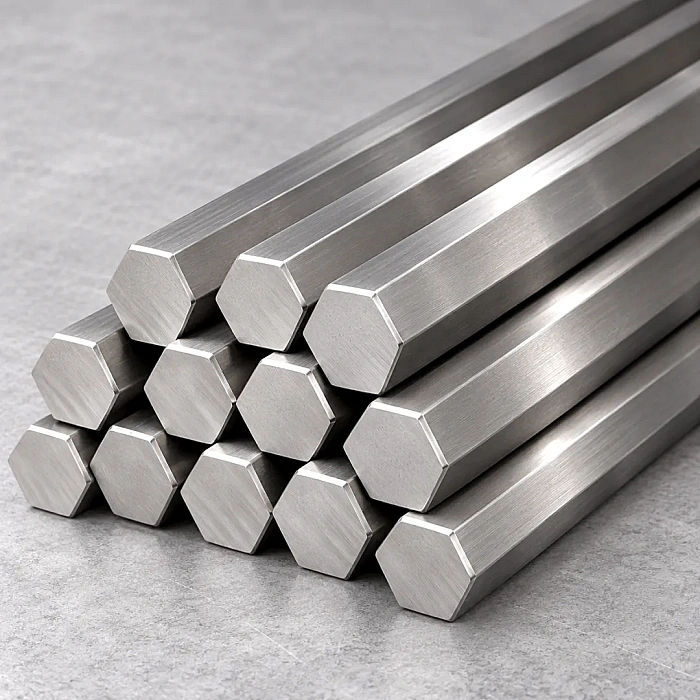

Stainless Steel Hex Bars Supplier in India

Why Stainless Machines the Way It Does

Rapid work hardening. Austenitic stainless hardens quickly under deformation. A tool that rubs rather than cuts hardens the surface ahead of itself, and the following pass then encounters harder material than the one before. This is why light finishing cuts in stainless can be more troublesome than heavier roughing cuts, which is the opposite of intuition.

Low thermal conductivity. At roughly a third of carbon steel's, heat generated at the cutting edge stays in the cutting zone rather than being carried away in the chip. Tool temperature runs higher for the same cutting speed, and tool life suffers accordingly.

Tough, stringy chips. Without free-machining additions the chip does not break cleanly. It forms long curls that wrap around tooling and workpiece, which on an unattended bar-fed machine means an operator has to intervene.

What follows in practice:

• Positive rake and genuinely sharp tooling. Dull tools cause more trouble in stainless than in any other material
• Maintain feed. Dwelling in the cut work hardens the surface and ruins the next pass
• Rigid setups, since deflection converts cutting into rubbing
• Generous coolant delivered at the cutting zone, not merely flooded over the part
• Free-machining grades where the application permits, at some cost in corrosion resistance

Free Machining Grades and The Compromise

The free machining grade of stainless steel has additional sulphur that creates manganese sulphides which fracture the chip exactly as carbon steel would.

The cost is corrosion resistance. Those same sulphide inclusions are discontinuities in the passive film, and they become pitting initiation sites. Free-machining stainless corrodes noticeably faster than its standard equivalent in the same environment, and it also welds poorly for the same reason free-machining carbon steel does.

The decision is straightforward once framed correctly: is the component going into an environment where the reduced corrosion resistance matters? If not, the productivity gain is worth having. If it is, no cycle time saving justifies a part that pits in service.

Galling and Thread Seizure

This is the stainless-specific problem that catches out fastener users, and it has nothing to do with corrosion.

Two stainless surfaces sliding under load tend to cold weld together. The passive film is thin, and pressure between mating threads breaks through it, bringing bare metal into contact with bare metal. Being the same alloy with identical crystal structure, the two surfaces bond, and continued rotation tears material away rather than sliding. The fastener seizes solid, often part way through tightening, and neither loosens nor tightens further.

Mitigation:

• Anti-seize compound on the threads, the standard and most effective answer
• Dissimilar grade pairing, such as a harder nut against a softer bolt, since matched surfaces gall worst
• Slower tightening speed, as galling is aggravated by frictional heat
• Rolled rather than cut threads, which have a smoother surface and lower friction
• Clean threads, since debris concentrates pressure at points

Geometry: Across Flats and Across Corners

Size is quoted across flats. Across corners is 1.155 times that figure, and confusing the two causes clearance problems at assembly.

Weights are calculated at 7.95 g/cm³ for austenitic grades, slightly heavier than the carbon steel equivalent.

Size Range and Tolerance

Applications

• Fastener manufacture. Bolts, nuts, set screws, studs for corrosive and hygienic service
• Valve and instrumentation. Stems, adaptors, fittings, compression couplings
• Food and pharmaceutical equipment. Machined fittings, hygienic connectors, spindles
• Marine hardware. Fittings, fasteners and machined components in chloride exposure
• Chemical plant. Threaded fittings, sample points, machined couplings
• Electrical and electronic. Terminal bodies, gland components, machined housings

Stainless Steel Hex Bars Stockists in India

Machining units depend on reliable stainless steel hex bars stockists in India for two reasons that reinforce each other. Hex sizes correspond to standard spanner and thread dimensions with no substitution available, and stainless carries a longer lead time and higher value than carbon steel, so a stockout is more expensive and takes longer to fix.

Our holding covers the standard across-flats ladder in the grades that move, stored segregated from carbon steel and racked with support along the length.

TSB Global LLP is a stockist and supplier rather than a drawing mill.

• Standard across-flats sizes held in depth
• Grade segregation with positive identification retained through cutting
• Storage isolated from carbon steel, preventing iron pickup on drawn surfaces
• Fixed cut lengths with square, burr-free faces for bar feeding
• Consistent bundle length supporting automatic loading
• Cutting with dedicated stainless equipment

Testing and Certification

Standard release covers chemical analysis, tensile and yield strength, elongation and hardness. Where material goes into fastener production, testing to ISO 3506 for corrosion-resistant fasteners can be arranged on finished components.

• Positive material identification by portable analyzer
• Intergranular corrosion testing to ASTM A262 where specified
• Dimensional verification of across-flats, across-corners, and included angle
• Twist and straightness measurement
• Grain Size—according to ASTM E112;
• Inclusions—according to ASTM E45
• Third-party inspection by TUV, SGS, BV, or any nominated third party

The certificate will be issued according to EN 10204 3.1 with

Stainless Steel Hex Bars Exporters in India

As stainless steel hex bars exporters in India, we supply fastener plants, fitting manufacturers and precision machining units across the Gulf, Southeast Asia, Africa, Europe and the Americas.

Two packing requirements combine on this product. Corner definition must survive transit, since the six corners are the functional feature and a crushed corner cannot be dressed out without taking the bar undersize. And iron contamination must be avoided, since steel strapping leaves deposits that rust in service and get blamed on the material.

Polyester banding is therefore used, or protective packing placed beneath any steel band, and bundles stay separated from carbon steel throughout. Drawn surfaces carry protective film where the finish is functional.

Fastener Grades and Property Classes

Stainless fasteners have been categorised in a completely different way compared to carbon steel fasteners, which confuses consumers due to their understanding of carbon steel fastener classification.

Corrosion-resistant fasteners are classified according to the ISO 3506 standard, where not only the material type but also the strength level are specified. The letter shows what type of stainless material is being referred to, whether austenitic, martensitic or ferritic. The figure following shows the property class of the material, obtained through cold work and not heat treatment in austenitic materials.

This aspect is important because austenitic stainless fasteners obtain their strength through cold work and not quenching. Anneal it and the strength is lost. Heat it substantially in service, and some strength is lost too.

Practical implications:

• Higher property classes require more cold work, which means the blank material and the heading process both have to suit
• Strength does not correlate with corrosion resistance. A stronger class in the same material group offers no additional corrosion protection
• Do not assume carbon steel equivalence. A stainless fastener is generally weaker than the carbon steel grade a designer might have specified, and substitution needs checking rather than assuming
