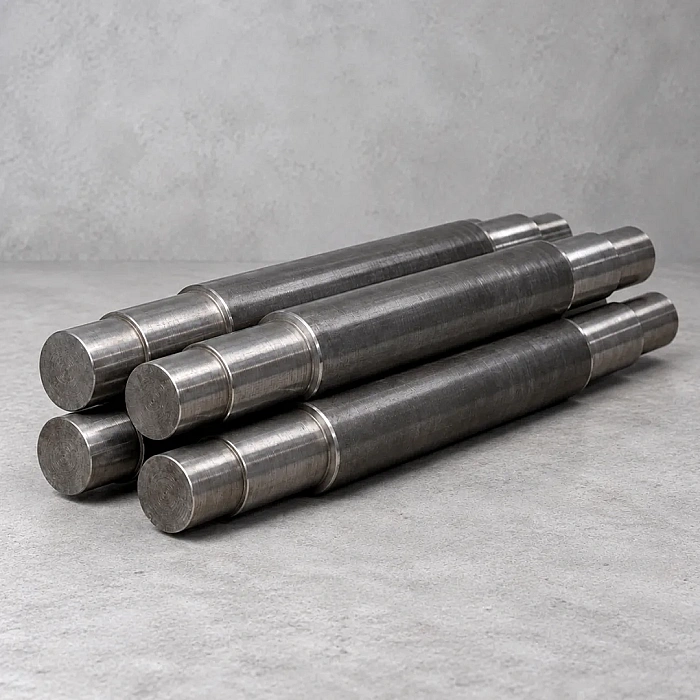

Alloy Steel Shafts Overview
Fatigue: How Shafts Actually Fail
Shaft failures are almost never overload failures. They are fatigue failures, and understanding the mechanism explains every design decision that follows.
A rotating shaft under bending load experiences a fully reversed stress cycle on every revolution. A point on the surface goes into tension, then compression, then tension again, thousands of times per hour. Superimposed on that is torsional stress from transmitted power, and frequently an axial thrust component as well.
Steel has a fatigue limit, a stress below which it will theoretically endure indefinitely. For wrought steels that limit sits at roughly 40 to 50 percent of tensile strength for a polished laboratory specimen. Real shafts never achieve it, because a series of factors reduce the usable figure:
|
Factor
|
Typical effect on fatigue limit
|
|
Surface finish, machined vs polished
|
Reduces by 10 – 25%
|
|
Surface finish, as-forged or corroded
|
Reduces by 30 – 60%
|
|
Size effect on large sections
|
Reduces by 10 – 25%
|
|
Reliability requirement above 50%
|
Reduces by 10 – 30%
|
|
Stress concentration at features
|
Reduces substantially, see below
|
The important conclusion is that a stronger grade does not proportionally buy fatigue life once surface condition and geometry dominate. Improving the fillet radius at a shoulder is frequently cheaper and more effective than moving up the grade ladder.
Stress Concentration at Shoulders, Keyways and Holes
Every change of section on a shaft concentrates stress, and the concentration factor is governed by geometry rather than by material.
|
Feature
|
Approximate stress concentration factor
|
|
Generous shoulder fillet, r/d around 0.1
|
1.4 – 1.6
|
|
Sharp shoulder fillet, r/d around 0.02
|
2.5 – 3.0
|
|
Profiled keyway, bending
|
1.6 – 2.0
|
|
Sled-runner keyway, bending
|
1.3 – 1.6
|
|
Transverse oil hole
|
2.0 – 2.5
|
|
Sharp undercut or thread relief
|
2.5 – 3.5
|
A sharp shoulder can therefore double the local stress compared with a well-radiused one, using identical steel. This is why the fracture on a failed shaft almost always originates at a shoulder, a keyway corner or an oil hole rather than in plain shaft material, and why replacing a failed shaft to the identical drawing frequently reproduces the failure.
Where we reverse engineer a failed component, we examine the fracture surface first and raise the geometry question before quoting. Any proposed change goes to the customer's engineering for approval rather than being made unilaterally.
Forging Practice and Reduction Ratio
Shafts are produced by open die forging, with an ingot upset and drawn down under a press with repeated manipulation.
The metallurgical purpose is consolidation. An ingot as cast contains centreline porosity, segregation and a coarse solidification structure. Forging closes the porosity by mechanical work, breaks up the cast structure and refines grain. It also aligns grain flow along the shaft axis and around profile changes, so that at a shoulder the grain follows the contour rather than being cut through as it would be if machined from oversize bar.
The extent of improvement is proportional to the work applied, expressed as forging reduction ratio. General duty shafts commonly work to 3:1. Fatigue-critical and marine applications frequently specify 4:1 or higher. We record the achieved ratio and certify it on every shaft, because a shaft supplied without a stated ratio cannot be assessed against these requirements.
Physical Properties and Section Effects
|
Property
|
Typical value
|
|
Density
|
7.85 g/cm³
|
|
Modulus of elasticity
|
205 – 210 GPa
|
|
Shear modulus
|
79 – 82 GPa
|
|
Thermal expansion, 20 to 100°C
|
11.5 – 12.5 µm/m·K
|
|
Fatigue limit, polished specimen
|
Roughly 0.4 – 0.5 × tensile strength
|
Section size drives heat treatment as much as grade does. A large diameter shaft cools slowly at the centre regardless of quench severity, which is why a deep-hardening grade is specified for heavy sections. Mechanical test pieces are taken from a prolongation representing the actual section thickness, not from a reduced coupon, since a small coupon reports properties the shaft core does not possess.
Sizes and Configurations
|
Parameter
|
Range
|
|
Diameter
|
100 – 1,200 mm
|
|
Length
|
Up to 12 m
|
|
Configurations
|
Plain, stepped, flanged, hollow bored, collared
|
|
Supply condition
|
Rough forged, rough machined, or finish machined to drawing
|
|
Machining allowance
|
10 – 40 mm rough forged, 3 – 8 mm rough machined
|
|
Heat treatment
|
Normalised, annealed, or quenched and tempered to a nominated band
|
Grade selection across EN19, EN24, EN25, EN26, EN30B, EN36, 30CrNiMo8 and 40CrNiMo6 is driven by section size and the depth to which properties must be held. In a 600 mm shaft, the difference between grades is measured at the core rather than at the surface.
Applications
- Cement plants. Kiln drive shafts, mill pinion shafts, crusher shafts, fan shafts
- Steel and rolling mills. Mill drive shafts, spindle shafts, roller table shafts
- Pumps and compressors. Rotor shafts, impeller shafts, drive spindles
- Power generation. Turbine shafts, generator rotor shafts, auxiliary drives
- Sugar, paper and process plant. Roller shafts, agitator shafts, gearbox components
- Material handling. Conveyor drive shafts, crane machinery shafts
Alloy Steel Shafts Stockists in India
The role of alloy steel shafts stockists in India differs from stockholding in every other product, because finished shafts are never stock. Diameters, lengths and step configurations belong to a specific machine, and holding finished shafts against speculative demand makes no commercial sense.
What is held is forged blank material in the common diameters and widely specified grades, in normalised or annealed condition. From there a shaft can be produced to drawing in a fraction of the time needed to start from an ingot, and that matters most in breakdown situations where a mill or a pump is standing idle.
- Forged blank stock across common diameters in widely specified grades
- Reduced lead time on replacement shafts produced from held material
- Reverse engineering from a failed component where drawings are unavailable
- Priority scheduling for breakdown and planned shutdown requirements
- Machining, heat treatment and inspection managed as a single scope
Ultrasonic Testing and Why It Is Not Optional
Every shaft we supply is ultrasonically examined, and the reason is economic as much as technical.
A subsurface void or inclusion cluster does not announce itself. The machinist cuts down through sound material, reaches the defect at some depth, and finds a component that cannot be repaired. At that point the forging is scrap and so is every hour invested in it. Testing at the rough machined stage means that discovery happens before the expensive work, not after.
Testing follows ASTM A388 or SEP 1921, scanned radially and axially, with the acceptance class agreed before production rather than argued afterwards. The full package also covers chemical analysis, mechanical testing from a representative prolongation, hardness survey along the length, magnetic particle inspection to ASTM E1444 on machined surfaces and radii, and dimensional and straightness verification against drawing.
Alloy Steel Shafts Exporters in India
As alloy steel shafts exporters in India, we supply equipment builders, marine yards and process plant operators across the Middle East, Southeast Asia, Africa, Europe and the Americas.
Handling is the dominant transit risk on a shaft. A finished machined journal damaged during loading has to be reworked or the shaft rejected, and on a component machined to drawing there is no spare material to recover it from. Shafts travel in timber cradles supporting them at multiple points rather than at the ends, journals receive sleeve protection, and lifting positions are marked so slings do not bear on a finished diameter.
Rust-preventive coating and VCI wrapping protect all machined surfaces. Identification is stamped on the shaft end face as well as on external packing. The full document package, including the ultrasonic report and heat treatment chart, is transmitted ahead of shipment rather than travelling with the container.
Why choose TSB Global LLP for Allow steel shafts ?
TSB Global LLP provides a sourcing-driven solution to companies requiring alloy steel shafts for industrial uses. Our team partners with some of the top manufacturers in India, arranging the sourcing process around the requirements of the client.
Our work primarily involves streamlining the connection between manufacturers and businesses that need the material, ensuring clarity about the documentation of the supplied materials. The supplier will furnish the material including mill test certifications, therefore providing customers with the documentation in terms of the origin of the materials used in their alloy steel shafts.
Need Alloy Steel Shafts? Get the Best Sourcing Support from TSB Global LLP.
About This Page
Fatigue and stress concentration figures given here are approximate values drawn from standard engineering practice and vary with exact geometry, surface condition, loading and material. They are indicative only and are not a substitute for fatigue calculation by a qualified engineer. Lead times depend on size, grade and processing availability and are confirmed against the specific requirement. Any design change proposed during reverse engineering is subject to the customer's engineering approval.
