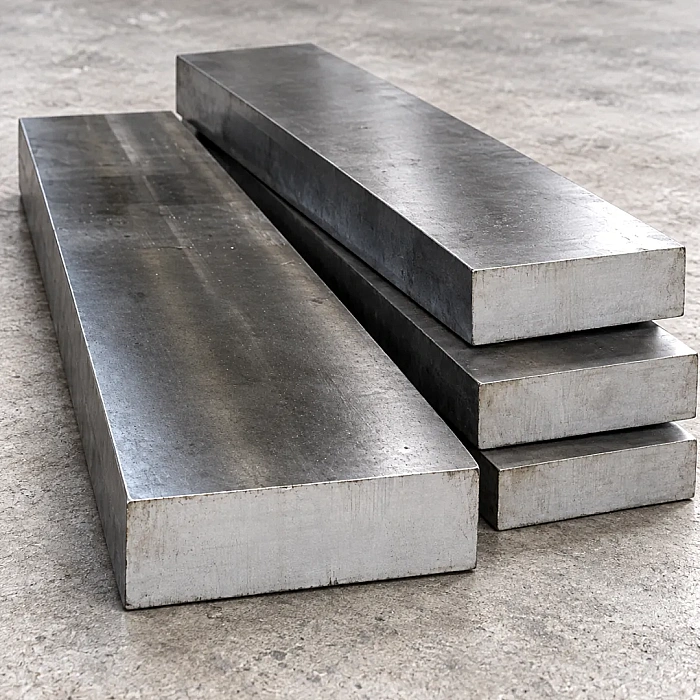

Die and Tool Steel Flats (Rectangular Bars) Supplier & Stockist in India

Die and Tool Steel Flats (Rectangular Bars) Overview

Why Plates Distort Through Heat Treatment

The cause is geometric rather than metallurgical, and understanding it prevents most of the trouble.

During quenching, the faces of a plate cool faster than the core, and the edges cool faster than the middle of a face. Uneven cooling produces uneven transformation, and uneven transformation produces movement. A long thin plate bows. A wide plate develops a saddle or a crown. Both then have to be ground out, consuming the allowance the tool maker was relying on.
Superimposed on that is stress left by machining. Rough machining releases residual stress from rolling or forging, and a plate that is not relieved will move during finish machining before it ever reaches the furnace.
Practices that reduce it materially:

Choose an air hardening grade where the plate is thin, long, or carries close tolerance features. Slow uniform cooling in still air is the single most effective control available
Stress relieve between rough and finish machining, so machining stress is released before hardening adds its own
Support the plate correctly in the furnace. A plate laid flat on a hearth sags under its own weight at high temperature. Vertical hanging or proper support prevents it.
Leave grinding allowance on both faces. Allowance on one face only means the plate cannot be trued if it moves the wrong way
Machine symmetrically. Pocketing one face heavily while leaving the other untouched guarantees movement

Grinding Allowance: Getting the Number Right

Tool makers order flats by finished size plus allowance, and the figure is a commercial decision as much as a technical one.

Too little and the plate cannot be trued after hardening, which scraps a part already carrying most of its machining cost. Too much and the tool room spends hours grinding away expensive material.

Plate thickness	Allowance per face	Allowance on width and length
Up to 25 mm	0.4 – 0.6 mm	1 – 2 mm
25 – 60 mm	0.6 – 1.0 mm	2 – 3 mm
60 – 120 mm	1.0 – 1.5 mm	3 – 5 mm
Above 120 mm	1.5 – 2.5 mm	5 – 8 mm

Air hardening grades move less and tolerate the lower end of these ranges. Oil hardening grades, and any long thin plate, need the upper end.

Why Flats Dominate Tool Making

Almost every press tool is an assembly of plates. The die plate carries the cutting profile. The punch plate holds the punches. The stripper plate strips material off the punch on the return stroke. Backing plates spread load. Each is rectangular, and each starts as a flat section.

Buying near-net matters more here than in most steel applications. Tool steel is expensive per kilogram and slow to machine annealed, so every millimetre of unnecessary stock removal costs twice: once in material and again in machine time.

Grade choice should follow the function of each plate rather than the tool as a whole. A die plate takes the wear and needs high carbide. A stripper plate sees far less abrasion and can be made from a cheaper grade or even from engineering steel. Specifying die plate material throughout an entire tool is a common and avoidable cost.

Section Range and Tolerance

Route	Width	Thickness	Tolerance	Condition
Cold drawn	20 – 150 mm	6 – 50 mm	h11	Spheroidise annealed
Forged	60 – 610 mm	20 – 250 mm	Machining allowance	Annealed
VD route	60 – 500 mm	20 – 200 mm	Agreed allowance	Annealed or pre-hardened
Ground flats	20 – 400 mm	10 – 150 mm	Within 0.1 mm	Annealed or pre-hardened

Machined-all-round and precision ground flats are supplied where a datum face is wanted on receipt, which removes a squaring operation from the tool room.

Physical Properties

Property	Typical value
Density	7.65 – 7.85 g/cm³
Modulus of elasticity	200 – 215 GPa
Thermal conductivity at 20°C	16 – 30 W/m·K by grade family
Thermal expansion, 20 to 200°C	10.5 – 12.5 µm/m·K
Annealed hardness	Under 250 HB
Weight per metre	Width mm × thickness mm ÷ 1000 × 7.85 kg

A 200 x 60 mm flat weighs 94.2 kg per metre, which is worth calculating before ordering, since tool steel handling limits are reached sooner than most workshops expect.

Applications

Grade and section choice depend on the plate's role inside the tool — here's where these flats are used:

Blanking and piercing tools – die plates, punch plates, stripper plates, backing plates
Progressive tooling – die blocks, pilot plates, carrier strips, guide plates
Forming and bending tools – Bend dies, wiper blocks, forming inserts, pressure pads
Plastic mould tooling – cavity plates, core plates, ejector plates, slide retainers
Shear and cutting – Guillotine blade stock, slitter knife blanks, trimming blades
Jigs and fixtures – Locating plates, clamping blocks, inspection fixtures

Die and Tool Steel Flats Stockists in India

What a tool room needs from Die and Tool Steel Flats Stockists in India is measured in hours rather than weeks. A tool is quoted, the job is won, the design is finished, and the steel is needed immediately because everything downstream is already scheduled.

Our stock is arranged for that pattern. Common widths and thicknesses in cold work, hot work and mould grades, held in cut-piece quantities, identified by grade and racked flat so nothing takes a set while it waits.

Wide grade spread in the sections press tooling consumes most
Sold by the piece and by the kilogram rather than by mill length
Cut to tool size, reducing both material cost and tool room machining
Same-day cutting on stock grades where a job is already running late
Grade identity preserved on every cut piece
Flat racked storage, so material arrives without bow or twist to remove

Cleanliness and Polishability

For flats destined for mould work, inclusion content matters more than any mechanical property, because it determines whether the plate will take a polish.

A polished mould surface is only as good as the steel behind it. Inclusions intersecting the surface open into pits during polishing, and no amount of further work removes them. On a textured or optical finish cavity, that is the difference between a usable tool and a rejected one.

Texturing behaves the same way. Chemical etching reproduces every inhomogeneity in the steel, and banded structure produces visible variation across an etched face.

Testing and Certification

Every batch is verified against a set of tests chosen for what actually causes tool failure, not just standard mill checks:

Inclusion rating to ASTM E45 or DIN 50602, the governing test for polishable material
Ultrasonic examination to ASTM A388 on forged flats, confirming soundness before machining
Annealed hardness verification across the width rather than at a single point
Micro-structure examination for carbide banding, which produces uneven wear across a die face
Dimensional and flatness verification on ground material
Third-party inspection through TUV, SGS, BV or a nominated agency

Certification is issued to EN 10204 3.1, with 3.2 supplied on request.

Die and Tool Steel Flats Exporters in India

As Die and Tool Steel Flats Exporters in India, we ship to tool rooms, mould makers and press tool builders across the Gulf, Southeast Asia, Africa and Europe.

Ground flats present the sharpest packing requirement in our range. A ground face carries the tool room's datum, and a scratch or corrosion pit means the plate has to be reground, losing the allowance the tool maker calculated. Ground surfaces are protected with oil, VCI film and a physical barrier, then cased with ground faces separated rather than in contact.

Grade confusion is the other export risk. Annealed tool steel plates of different grades look identical, and once outer packing is opened at a destination warehouse, an unmarked plate becomes unusable because nobody will risk hardening steel of unknown grade. Every piece is therefore marked directly on the material, and packing lists state grade and size against each item.

Why Choose Us

A distorted plate usually isn't a bad batch of steel — it's a geometry problem most suppliers won't stop to explain. Here's what makes us different:

We Explain Why It Bowed, Not Just Sell You Another Plate — most distortion is geometric, not metallurgical, and we'll tell you which before you reorder the same grade
Honest About What We Are — a stockist and supplier, not a producer, holding material from established mills with traceable certification
Cut to Tool Size, Not Mill Length — flats cut to finished size plus allowance, reducing both material cost and machining time at your end
Flat Racked, Not Stacked Loose — stored so material arrives without bow or twist to remove before you've even started machining
Grade Matched to the Plate's Job — we'll flag when a die plate spec has been carried across a stripper or backing plate that doesn't need it
Same-Day on Stock Sections — cut and released the day the tool room needs it, not on a mill lead time

Need Help Selecting the Right Die and Tool Steel Flats?

Send us your section size, grade and application, and we'll confirm the right flat for your tooling before you order.

About This Page

Grinding allowance figures are typical starting points and depend on grade, geometry, section and heat treatment practice. They should be confirmed with your heat treatment provider for a specific tool rather than applied as a rule. Property values are typical guidance and do not replace certified results on delivered material.

Die and Tool Steel Flats (Rectangular Bars) – Frequently Asked Questions

Uneven cooling combined with unrelieved machining stress. Stress relieving between rough and finish machining, and correct furnace support, address most cases.

Ground costs more but arrives with a datum face and saves a squaring operation. For plates going straight into machining, ground is usually the economical choice despite the higher rate.

Stripper plates see little abrasion and rarely justify a high carbide grade. A tougher, cheaper grade is normally adequate, and specifying die plate material throughout is a common avoidable cost.

Around 0.6 to 1.0 mm per face and 2 to 3 mm on width and length, adjusted for grade and geometry. Long, thin plates need more.

To a point, which is exactly what an air hardening grade achieves. Beyond that, distortion is governed by geometry and residual stress rather than by quench rate alone.

For mould cavities and fatigue-loaded dies, yes, since inclusion content limits both polishability and tool life. For simple blanking plates the premium is harder to justify.
