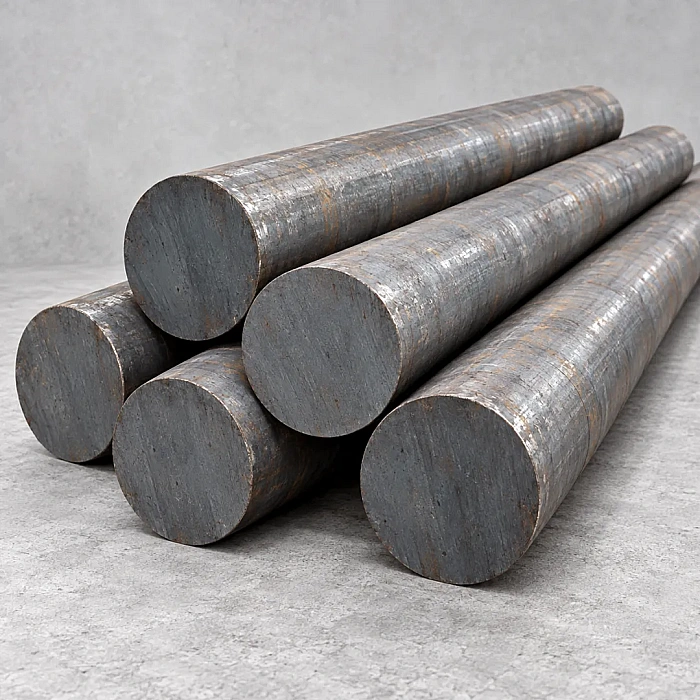

Die and Tool Steel Round Bars Supplier in India

Carbides: What Actually Resists Wear

Here is the point that separates people who understand tool steel from people who merely quote it.

Hardness measured on a Rockwell tester is a bulk property. Wear resistance is not. It comes overwhelmingly from hard carbide particles distributed through the hardened matrix, and the type, volume and size of those carbides determine tool life far more than the bulk hardness figure does.

The carbides are dramatically harder than the matrix holding them:

Vanadium carbide is roughly three times harder than the surrounding matrix, which is why even modest vanadium additions transform abrasion resistance. It is also why high carbide grades are difficult to machine and difficult to grind: the abrasive in the wheel has to be harder than the carbides it is cutting.

Carbide volume fraction is the number that predicts tool life in abrasive service. A grade at fifteen percent carbide by volume will outlast one at four percent in a blanking die, and will be noticeably less tough under impact. That trade-off cannot be escaped, only chosen deliberately.

Wear Mechanisms and Matching Grade to Failure

Tools fail in identifiable ways, and each points to a different remedy.

• Abrasive wear - The cutting edge rounds off progressively. Points to insufficient carbide. Move up the carbide ladder
• Adhesive wear or galling -Workpiece material welds to the tool and tears away. Points to surface finish and lubrication as much as to grade, and often responds to coating rather than a grade change
• Chipping - Small pieces break from the edge. The grade is too hard or too heavily carbided for the impact present. Move towards toughness
• Gross cracking -The tool splits Usually a heat treatment fault, a sharp internal corner, or both, rather than a grade problem
• Heat checking - A network of fine thermal fatigue cracks on the surface. A hot work failure mode, indicating a cold work grade in hot duty or inadequate cooling

Diagnosing which of these occurred before reordering is the single most useful thing a tool room can do, and it costs nothing but attention.

The Hardening Class System

The letter prefix on a tool steel designation is not decorative. It describes how the steel hardens, and that predicts more about behaviour in a tool room than the full analysis does.

• Air hardening -  Sufficient alloy content to harden in still air with no quench medium. Slow uniform cooling means minimal thermal shock and very little dimensional movement, which is why these grades are chosen for intricate dies.
• Oil hardening - Quenched in oil, faster than air and slower than water. Movement is moderate and predictable, and the grades machine readily annealed. General tooling where extreme stability is not the governing concern.
• Hot work - Formulated to retain hardness at elevated temperature rather than to reach maximum room-temperature hardness. Lower carbon, with alloy content tuned against thermal fatigue.

• Shock resisting - Lower carbon and reduced carbide, trading wear resistance for toughness. Specified where chipping rather than gradual wear is the expected failure mode.

Physical Properties

Note how low thermal conductivity runs against carbon steel at roughly 50 W/m·K. High alloy tool steel heats and cools slowly and unevenly, which is exactly why staged preheating is essential and why charging a cold tool into a hot furnace invites cracking.

Size Range and Supply Condition

Material is supplied annealed as standard, since tool steel at working hardness cannot be machined economically.

Applications

The grade and hardening class matter because of what the tool actually does in service. Here's where these steels are put to work:

• Press tooling. Blanking punches, piercing pins, forming dies, stripper components, pilot pins
• Die casting and extrusion. Die inserts, cores, ejector pins, mandrels, dummy blocks
• Cutting and shearing. Guillotine blades, slitter knives, granulator blades, trimming tools
• Plastic moulding. Core pins, sprue bushes, ejector components, small cavity inserts
• Cold forming. Header dies, thread rolling dies, extrusion punches, coining tools
• Gauges and fixtures. Plug gauges, jigs, locating pins requiring dimensional stability

Die and Tool Steel Round Bars Stockists in India

Tool rooms depend on capable die and tool steel round bars stockists in India because their consumption pattern is the inverse of a production shop's. Many grades, small quantities, driven by whatever is on the bench, and needed today because the tool is usually already late by the time anyone orders steel.

Our holding reflects that. Widely used cold work, hot work and mould grades across common diameters, in cut-piece quantities, identified by grade and stored so a short piece can be cut without disturbing the rest.

TSB Global LLP is a stockist and supplier rather than a producer, and we would rather say so than let a buyer assume a mill relationship we do not have.

• Broad grade range in the small diameters where tool room consumption concentrates
• Cut pieces sold by the kilogram rather than by mill length
• Same-day cutting on grades held in stock
• Grade identity maintained on every cut piece, preventing costly mix-ups
• Annealed hardness confirmed on release, so machinability is known before the job starts

Why Two Bars of the Same Grade Cost Different Amounts

For tools where polishability or fatigue life governs, inclusion content matters more than any mechanical property, and it is the reason two bars of the same grade can differ substantially in price.

Non-metallic inclusions are crack initiation sites in a hardened tool. On a mould cavity, inclusions intersecting the surface open into pits during polishing and no further work removes them. Vacuum degassed material carries fewer inclusions and polishes to a higher standard, which is why cosmetic and fatigue-critical tooling justifies the premium and why routine blanking work generally does not.

Ask for the inclusion rating rather than asking whether the material is clean. It is measurable, it is reported to ASTM E45 or DIN 50602, and it settles the question.

Testing and Certification

Certification covers chemical analysis and annealed hardness as a minimum. The tests that predict tool life go further:

• Inclusion rating to ASTM E45 or DIN 50602
• Ultrasonic examination to ASTM A388 on forged sections
• Micro-structure examination for carbide distribution and banding, which governs whether wear resistance is uniform across a tool face
• Annealed hardness verification, confirming the material machines as expected
• Grain size to ASTM E112
• Third-party inspection through TUV, SGS, BV or a nominated agency

Certification is EN 10204 3.1 as standard, with 3.2 available on request.

Die and Tool Steel Round Bars Exporters in India

As die and tool steel round bars exporters in India, we supply tool rooms, mould makers and die casting units across the Middle East, Southeast Asia, Africa and Europe.

Tool steel carries high value per kilogram, which changes the economics of packing entirely. On commodity bar, elaborate protection is not worth its cost. On tool steel the material value justifies proper cases, and a corroded or damaged bar is a loss that dwarfs any packing saving.

Cut pieces are packed individually, and this matters more than it sounds. Two annealed tool steel pieces of different grades are visually indistinguishable, and a mixed-up grade is discovered only after the tool has been hardened and behaves wrongly. Every piece therefore carries grade marking directly on the material as well as on the packing.

About This Page

Carbide hardness and property figures given here are typical values for guidance and vary with composition, heat treatment and measurement method. Working hardness ranges depend on the specific grade and tempering practice. Grade selection should be made against the observed failure mode and intended duty, ideally in consultation with your heat treatment provider, rather than from general comparison alone.

Why Choose Us

Most suppliers will sell you the grade you ask for. Here's what makes us different:

• We Diagnose Before We Reorder — we'll ask how the last tool failed before recommending the same grade again; a chipped edge and a rounded edge point to opposite fixes
• Honest About What We Are — a stockist and supplier, not a producer, and we say so rather than let you assume a mill relationship we don't have
• Grade Held, Not Just Listed — a broad range in the small diameters tool rooms actually consume, cut by the kilogram and identified by heat number
• Same-Day on Stock Grades — cut and released the day the tool room needs it, not on a mill lead time
• Inclusion Rating, Not Just a Clean Claim — reported to ASTM E45 or DIN 50602, so cleanliness is measured rather than assumed
• Certification That Traces Back — EN 10204 3.1 as standard, 3.2 on request, traceable to established producers

CTA — Tell Us How the Last One Failed

Reordering the same grade after a failure often repeats it. Send us the failure — chipped, rounded, cracked, or heat-checked — and we'll help you match the grade to what actually happened, not just to what's on the last purchase order.
