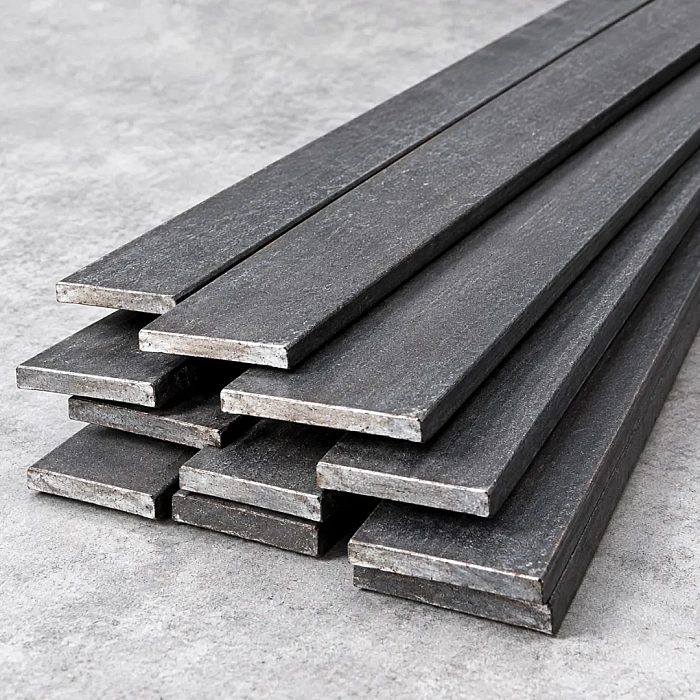

Carbon Steel Flat Bars Supplier in India

Bend Behaviour: What Really Determines the Right Grade?

Flat bar is bent more often than any other bar section, so forming performance usually governs grade selection ahead of strength.

Minimum bend radius is expressed as a multiple of material thickness, and it rises with carbon content and with hardness. Bending below that radius stretches the outer fibre past its limit and it cracks.

Three further factors decide whether a bend succeeds:

• Orientation to the rolling direction – Bending across the rolling direction is more forgiving than along it, because the elongated grain and inclusion stringers run perpendicular to the tensile stress rather than parallel to it.

• Edge condition – A sheared or nicked edge concentrates strain and initiates cracking. This is the single most common cause of bend failure in workshop practice, and it is a preparation issue rather than a material defect.

• Springback – Higher strength material springs back further after the press releases, so tooling must overbend. A fabricator switching from mild steel to ST52-3 without adjusting tooling finds every bend falling short of the drawing angle.

Neutral Axis & Bend Allowance: Why Does Your First Part Come Out Wrong?

When a flat is bent, the outer surface stretches and the inner surface compresses. Somewhere between them sits a plane that does neither, and its position determines the developed length of the blank.

That plane is not at mid-thickness. It shifts towards the inside of the bend, and the tighter the bend, the further it shifts. The K-factor expresses its position as a proportion of thickness.

Getting this wrong is why a first-off part comes out the wrong length despite the drawing and the machine both being correct. On a single bend the error is small. Across a component with six bends, it accumulates into a visible dimensional problem.

Section Range and Tolerance

Weight per metre is calculated by multiplying the width in mm by the thickness in mm, dividing by 1000, and then multiplying by 7.85. A 75 x 20 mm section therefore weighs 11.78 kg per metre.

Edge Condition & Weld Preparation: More Than Just Appearance

The edge condition on a flat bar is functional rather than cosmetic, and it differs meaningfully between routes.

A hot-rolled flat carries slightly rounded edges as a consequence of rolling. For welded fabrication this is an advantage, since a rounded edge accepts a fillet weld cleanly and holds paint better than a sharp corner, which sheds coating and becomes a corrosion initiation point.

A cold-drawn flat carries sharp, well-defined edges, suiting components that seat flush against a mating face, though they need deburring before painting or galvanising.

For welded joints:

• Mill scale must be removed from the weld zone. Welding through scale traps inclusions and generates porosity
• Low carbon flats weld without preheat in normal thickness ranges
• Medium carbon flats require preheat, rising with carbon content and section thickness
• Post-weld stress relief is advisable on heavy assemblies that will be machined afterwards

Applications of Carbon Steel Flat Bars

• Structural fabrication – Bracing, gusset plates, stiffeners, base plates, connection components
• Agricultural equipment – Tine bars, harrow components, linkage arms, implement frames
• Hand tools and implements – Chisel stock, blade blanks, spade and shovel components
• Material handling – Conveyor frames, guide rails, wear strips, support brackets
• Grilles, gates and architectural metalwork – Frames, infill bars, decorative sections
• Trailer and body building – Chassis reinforcement, spring hangers, mounting brackets

Trusted Carbon Steel Flat Bars Stockists in India for Quality Material

The case for working with organised Carbon Steel Flat Bar Stockists in India rests on the size ladder more than on any other factor. Flats are ordered across an enormous range of width and thickness combinations with limited scope for substitution. A fabricator needing 75 x 12 mm cannot readily use 75 x 16 mm, because the extra thickness changes the weight, the bend allowance and the weld preparation together.

Stock is held in close increments across the widely used sections, racked flat rather than stacked loose. Flats stored on the edge develop a bow and twist that must be removed before use, and straightening introduces residual stress that reappears during cutting.

• Close ladder of width and thickness combinations
• Supply from single lengths through to full-tonnage requirements
• Cut to a customer list, reducing both freight and workshop offcut
• Multiple sections consolidated into a single dispatch
• Racked storage preserving flatness through the holding period

Surface Protection and Finishing of Carbon Steel Flat Bars

Flats spend more of their service life exposed than most bar products, so finishing matters.

• Shot blasting removes mill scale and gives the surface profile a coating needed for adhesion. Paint applied over an intact mill scale fails when the scale eventually lifts, which it will.
• Hot dip galvanising offers long service with minimal maintenance, though sharp cold-drawn edges should be broken first, since zinc builds unevenly on a sharp corner and the coating is thinnest exactly where damage is most likely.
• Shop priming after blasting protects material between fabrication and site coating.

Testing and Certification for Carbon Steel Flat Bars

The standard release covers chemical analysis, tensile and yield strength, elongation and hardness. For fabrication grades, bend testing is frequently more relevant than tensile data, since it demonstrates the property the fabricator will actually rely on.

• Bend testing to a specified radius, confirming forming behaviour before production commits
• Impact testing where the structure operates at low temperature
• Ultrasonic examination on heavy forged flats
• Dimensional verification of width, thickness, camber and edge condition
• Carbon equivalent reported, supporting welding procedure qualification
• Third-party inspection through TUV, SGS, BV or a nominated agency

Certification is issued to EN 10204 3.1, with 3.2 available where an independent surveyor is required.

Carbon Steel Flat Bars Exporters in India – Quality Products for Global Markets

As Carbon Steel Flat Bars Exporters in India, we ship to fabrication contractors, equipment builders and trading houses across the Gulf, Southeast Asia, Africa, Europe and the Americas.

Flats are among the harder sections to ship without damage, and the causes are mechanical rather than metallurgical. Wide, thin material strapped at excessive intervals arrives bowed. Bundles stacked without dunnage arrive with edge damage along the contact faces. Both are packing failures, and both are avoidable through discipline rather than expense.

Strapping intervals are matched to section width and thickness, timber dunnage separates bundles and distributes load and bright-drawn material receives rust-preventive coating with VCI wrapping. Piece-wise packing lists allow verification at receipt without unbundling.

Why Use Carbon Steel Flat Bars?

Carbon steel flat bars are used in any work where the section size, forming characteristics and edge condition have a direct influence on the fabrication performance. TSB Global LLP provides flats in various widths, thicknesses and conditions of supply, assisting purchasers to choose material based on their forming, welding, dimensional and finishing needs.

• Extensive range of sections: Between 10 mm – 500 mm in widths and between 3 mm – 200 mm in thicknesses.
• Various supply sources: Hot-rolled, cold-drawn and forged to meet various needs.
• Supply with fabrication: Structural work, agricultural equipment, tools and general engineering.
• Dimensional selections: Close width and thickness selection assist in minimising the needless material replacement.
• Testing and certification: Chemical, mechanical, dimensional and application-specific testing is possible to organise.

Storage and Handling After Delivery

Flats deteriorate in storage faster than any other bar section, and much of the damage we are asked about after delivery happens on the customer's own floor rather than in transit.

• Store flat, not on edge – A flat leaned against a wall takes a permanent bow within weeks under its own weight, and the heavier the section, the quicker
• Support along the full length – Two supports at the ends of a 6-metre flat allow sag at the centre. Supports at roughly one-fifth of the length from each end minimise deflection
• Keep bright material off concrete – Concrete holds moisture and draws it into anything resting on it. Timber bearers cost nothing
• Do not stack heavy sections on thin ones – Thin flats deform under point loading from the corners above them
• Retain the heat number tag – Once a bundle is broken and tags discarded, traceability is gone, and untraceable material cannot be used on certified work
• Rotate stock – Oiled bright material loses its protective film over long storage and begins to spot, particularly through monsoon months

Source Carbon Steel Flat Bars for Your Requirements

Need carbon steel flat bars for fabrication, agricultural equipment, hand tools, material handling or general engineering? TSB Global LLP supplies different widths, thicknesses and material conditions with certification traceable to established Indian mills. Share your required section size, grade, quantity and supply condition with our team to discuss the most suitable available option for your application.

Let's Connect Today!!

About This Page

Bend radius and K-factor figures are typical values for guidance and vary with grade, condition, tooling and forming method. They should be confirmed by trial before committing tooling. Weight figures are theoretical at nominal density and vary within rolling tolerance. Welding procedures should be qualified to the applicable code rather than adapted from general guidance.
