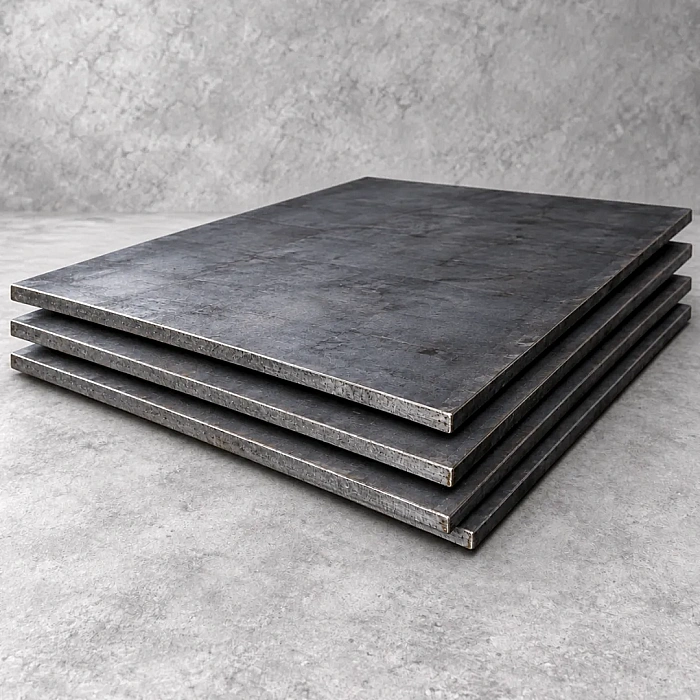

Carbon Steel Plates Supplier in India

Understanding Brittle Fracture in Carbon Steel Plates

For a plate destined for pressure or low-temperature service, the governing property is not strength. It is toughness, and specifically the ability to resist brittle fracture.

Steel does not fail gradually in brittle fracture. It fails suddenly, at a stress well below yield, from a crack that initiates at a weld defect or a notch and runs faster than anyone can react to. What determines whether the crack propagates or arrests is the material's capacity to absorb energy at the operating temperature.

That capacity is temperature dependent, and the transition can be sharp:

The transition temperature is what impact testing establishes, and it is why boiler quality plate is supplied normalised with a fine, uniform grain and with tighter sulphur and phosphorus control than structural plate requires. Grain refinement lowers the transition temperature, which is the whole point of normalising.

Plate Flatness, Cutting and Cut-Edge Quality

Flatness generates the most disputes and the least documentation in the plate trade, largely because buyers assume it and mills specify it loosely.

An out-of-flat plate causes trouble at every downstream stage. It will not sit stably on a cutting table, which produces bevel variation in profile cutting. It needs clamping before machining and clamping distorts it further. In a welded assembly, the fabricator pulls it into position and locks stress into the joint that reappears as distortion after welding.

Cutting method matters as much as flatness, and each brings its own edge:

• Gas cutting – Economical on heavy thicknesses, produces a locally hardened heat-affected zone. Machining a gas cut edge without stress relief is difficult on medium carbon material
• Plasma cutting – Faster on medium thicknesses with a narrower heat-affected zone, though edges carry a slight bevel to account for close-tolerance work
• Laser cutting – Cleanest edge and tightest tolerance, restricted to thinner plates and uneconomical on heavy sections
• Waterjet cutting – No heat affected zone at all, which makes it right where the cut edge carries load or where the material must not be metallurgically altered

Size Range and Tolerance

Cut-to-size plate, profile-cut components, edge-prepared plate and shot-blasted and primed material are supplied against specific requirements.

Laminations and Through-Thickness Performance

A lamination is a planar discontinuity lying parallel to the plate surface, originating from segregation or non-metallic inclusions flattened during rolling. In a plate loaded in its own plane, a lamination may be harmless. In a plate loaded through its thickness, it is a defect waiting to open.

This matters in two situations specifically. In a pressure vessel wall, a lamination becomes a discontinuity in the containment boundary. In a heavily welded structural connection, weld shrinkage pulls on the plate through its thickness and can tear it along a lamination, a failure mode known as lamellar tearing.

Where through-thickness load applies:

• Ultrasonic examination to IS 1180 or ASTM A578 detects laminations before fabrication rather than after
• Through-thickness tensile testing measures the short transverse ductility that governs lamellar tearing resistance
• Reduced sulphur specification improves through-thickness properties, since sulphide inclusions are the usual culprit
• Joint design changes can often reduce through-thickness restraint more cheaply than upgrading the plate

Where Carbon Steel Plates Are Used

• Pressure vessels and storage tanks – Shells, dished ends, nozzles, saddles, support structures
• Structural fabrication – Base plates, gusset plates, stiffeners, cleats, connection components
• Earthmoving and construction equipment – Bucket bodies, boom plates, cutting edges, chassis members
• Material handling – Hopper linings, chute plates, conveyor structure, skirt boards
• Shipbuilding and barge construction – Hull plating, bulkheads, deck plating, internal structure
• General machining – Machine bases, mounting plates, jig plates, cut blanks

Carbon Steel Plates Stockists in India for Time-Critical Project Requirements

Fabricators work with capable Carbon Steel Plates Stockists in India because plate procurement is timing sensitive in a way bar procurement is not. Mills roll to programmes, and a fabricator needing 16 mm E350 next week cannot wait for the next rolling of that thickness. A stockist bridges the gap, and that is the whole commercial proposition.

Our holding covers widely used thicknesses in structural grades, with medium carbon and boiler quality plate held in the sizes that move consistently. Plates are stored horizontally on level supports rather than on edge, since a plate stored on edge takes a permanent set that no subsequent handling removes.

TSB Global LLP is a stockist and supplier rather than a rolling mill.

• Common structural thicknesses held against project schedules
• Supply from single plates through to full project tonnage
• Cut to size and profile cutting to a customer drawing
• Edge preparation and bevelling arranged before dispatch
• Shot blasting and primer application where scale removal is wanted before use
• Horizontal storage on level supports, preserving flatness

Testing and Certification for Carbon Steel Plates

The standard release covers ladle and product chemical analysis, tensile and yield strength, elongation and, where the grade requires it, impact values at specified temperature.

Additional testing on request:

• Ultrasonic examination to IS 1180 or ASTM A578 for lamination detection
• Bend testing confirming forming behaviour before rolling or pressing
• Through-thickness tensile testing where short transverse loading applies
• Simulated post-weld heat treatment on test coupons, confirming properties survive your PWHT cycle
• Hardness survey across the plate where machining or wear performance is critical
• Third-party inspection through TUV, SGS, BV or a nominated agency

Certification is EN 10204 3.1 as standard, with 3.2 supplied where pressure equipment codes require independent endorsement.

Carbon Steel Plates Exporters in India for Global Heavy-Engineering Supply

As Carbon Steel Plates Exporters in India, we ship to fabrication yards, tank builders and equipment manufacturers across the Middle East, Southeast Asia, Africa, Europe and America.

The plate presents handling risks rather than packing risks. A plate is heavy, unwieldy and easily bent during lifting and a plate arriving with a permanent bend has to be flattened before use, which on thin sections costs more than the plate is worth. Lifting points are identified, magnetic or vacuum lifting specified where appropriate, and plates shipped in flat stacks with timber bearers supporting the full width rather than only the ends.

Corrosion protection depends on the voyage. Mill scale offers limited short-term protection, and on extended routes or where material will not be used immediately, oiling or temporary primer is applied. For a plate that will be shotblasted before fabrication anyway, heavy protection adds cost without benefit.

Understanding Carbon Steel Plate Weight and Ordering

Plate is sold by weight and specified by dimension, so every order involves a conversion worth getting right.

Weight is length in metres multiplied by width in metres multiplied by thickness in millimetres multiplied by 7.85, giving kilograms.

Two points when comparing quotations. Theoretical weight assumes exact nominal thickness, while actual thickness varies within tolerance, so a plate rolled at the top of tolerance weighs more than the calculation suggests. Suppliers invoice on either basis, and on a large order the difference matters. We state which applies at quotation rather than leaving it to appear on the invoice.

Why Choose Carbon Steel Plates?

The heavy fabrication, structural works and equipment production utilise carbon steel plates to the extent that the thickness, flatness and material condition directly impact the quality of fabrication. TSB Global LLP can provide hot-rolled plates of varying thickness and make cutting edge preparation, testing and finishing as per the project needs.

• Large range of thickness: Plates are provided between 5 mm and 150 mm.
• Application specifics: Structural, medium carbon and boiler quality plates can be offered.
• Reducing flexibility: Gas, plasma and laser profile cutting can be scheduled based on requirement and thickness.
• Storage on a flat surface: Plates are laid on flat supports to aid in maintenance.
• Further testing: UT, bending, through-thickness and hardness surveys may be scheduled when necessary.
• Ready to process projects: Cut-to-size, profile cut, bevelling, shot blasting and priming can be done based on specifications.

Source Carbon Steel Plates for Heavy-Duty Projects

Need to plan a pressure vessel, storage tank, structural, earthmoving equipment or heavy engineering use? TSB Global LLP is the provider of carbon steel plates in various thicknesses and can provide cutting edge preparation, testing and surface preparation as per your requirements. Share your plate grade, dimensions, thickness, quantity and application with our team to discuss a suitable supply solution.

Get in touch now and explore the best Carbon Steel Plate!!!

About This Page

Charpy energy values are representative of characteristic transition behaviour and are highly dependent on grade, thickness, condition and specimen orientation. They are not design values. The governing code establishes the impact requirements on pressure and low-temperature service, and the choice of the material used in the pressure-retaining equipment should be based on a qualified engineer against that code and not on a general guideline.
