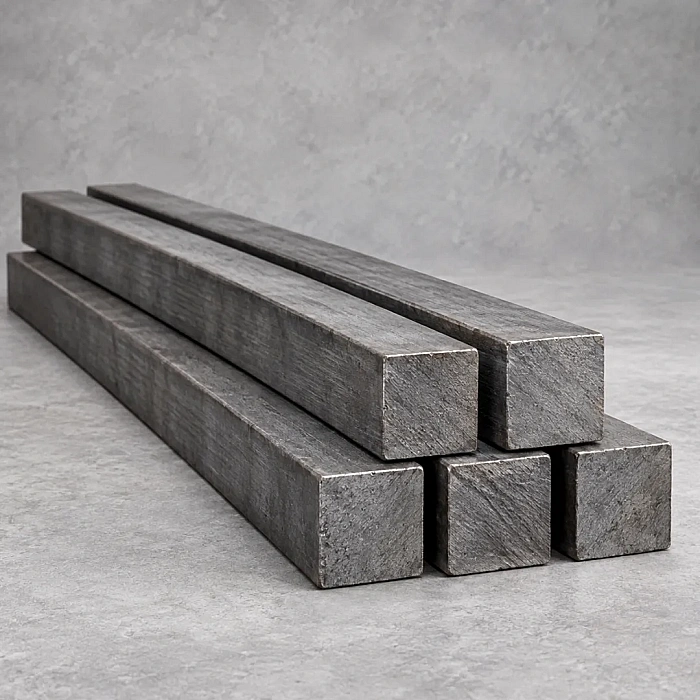

Alloy Steel Square Bars Supplier in India

How a Square Section Carries Load

A square is not simply a round bar with corners. The geometry changes how stress is distributed, and the differences are worth knowing before a section is specified.

In bending, a square is more efficient than a round of the same cross-sectional area because material sits further from the neutral axis. For equal area, a square offers roughly 18 percent morae section modulus about its principal axis.

In torsion, the position reverses. A circular section is the only shape where shear stress is distributed uniformly around the circumference. In a square, torsional shear stress peaks at the midpoint of each face and drops to zero at the corners, which is counter-intuitive and catches people out. The torsional stiffness of a square is roughly 88 percent that of a round with the same area.

The diagonal figure matters more than most designers expect. A square loaded across its diagonal is substantially weaker in bending than the same square loaded across its faces, so orientation in an assembly is a design decision rather than an assembly convenience.

Corner Condition and Stress Raisers

The corners define a square bar, and they differ meaningfully by production route.

Cold-drawn squares carry sharp, well-defined corners formed as material flows into a shaped die. Hot-rolled squares carry a small natural radius. Forged squares carry a larger radius that varies with section size and press practice.

Beyond appearance, this has consequences:

• A square seating in a machined pocket must have its corner radius reconciled with the pocket's internal radius, or it sits proud on the corners and rocks
• Under cyclic torsional load, sharp external corners on the bar meeting sharp internal corners in a socket create a stress concentration that initiates fatigue cracking. Heavily loaded square drives are deliberately radiused on both parts
• For key stock, sharp corners and close across-flats tolerance are both needed, since a key that fails to fill its keyway hammers it wider over time
• For painted or plated parts, sharp corners shed coating and become corrosion initiation points, so light edge breaking extends finish life measurably

Residual Stress and Dimensional Stability

This causes more workshop frustration with square bar than anything else, and it is seldom explained at the point of sale.

Cold drawing places the bar surface in compression and the core in tension. The bar stays stable while that system remains balanced. Remove material asymmetrically, by cutting a slot along one face or machining a step, and the balance is destroyed and the bar bends. A section that measured straight on the rack arrives at inspection visibly bowed, and the machinist reasonably concludes the material was faulty.

It was not. It was as-drawn, and as-drawn material behaves this way.

The remedies, once the cause is understood:

• Specify stress-relieved material where asymmetric machining is planned
• Machine symmetrically where the design permits, removing equal material from opposing faces
• Rough machine, stress relieve, then finish machine on tight-tolerance components
• Use hot rolled or normalised material where stability matters more than surface finish

Section Range and Tolerance

Squareness is verified by diagonal measurement, not by across-flats measurement alone. A section can sit within tolerance on both pairs of flats and still be a parallelogram, and only a diagonal check reveals it.

Physical Properties and Section Data

A 50 mm square weighs 19.6 kg per metre; a 100 mm square weighs 78.5 kg per metre. Note that weight scales with the square of the side dimension, so moving up one size step costs considerably more material than the dimensional jump suggests. This is the arithmetic behind buying near-net rather than machining down.

Applications

• Forging shops. Blanks for hammer heads, tool bodies, fittings, formed components
• Power transmission. Machine keys, drive spindles, splined shaft blanks, shear pins
• Machine tool manufacture. Tool posts, clamping blocks, adjusting components, frame members
• Press tooling. Punch blanks, die holders, ejector components
• Agricultural and off-highway equipment. Linkage members, torsion components, machined blanks.
• Plant maintenance. Replacement drive members, machined spares, and repair fabrication

Alloy Steel Square Bars Stockists in India

Buyers rely on capable alloy steel square bar stockists in India because square sections come in narrow increments and substitute poorly. A forging shop working to a blank weight cannot casually move up a section, since the extra material has to go somewhere in the forging and usually goes into flash and die wear.

Our holding covers close increments across the sections in regular demand, so buyers purchase near-net. Bars are racked with support along the length because square sections stored loose develop both bow and twist, and twist is the more troublesome of the two since it stays invisible until the bar meets a square fixture.

• Close increments across the widely used across-flats sizes
• Supply from single lengths to full-tonnage quantities
• Cutting to a blank list, improving yield, and reducing remnant
• Consolidated dispatch where several sections serve one build
• Supported racking, preserving straightness and freedom from twist

Cutting Yield and Blank Preparation

Square bars are consumed almost entirely as cut blanks, which makes yield a bigger factor in delivered cost than the kilogram rate.

A 6-metre bar cut into 380 mm blanks yields fifteen pieces and leaves roughly 300 mm unusable. Cut into 400 mm blanks, it yields fifteen and leaves nothing behind. Three controllable factors govern this:

• Blank length against stock length. Where blank length divides cleanly, the remnant approaches zero
• Kerf loss. A 2 mm bandsaw kerf across fifteen cuts removes 30 mm, which must be in the cutting plan rather than discovered at the last blank
• Facing allowance. Saw-cut faces are rarely square enough to machine from directly, and square, burr-free cuts reduce the allowance needed

Forging customers generally work to blank weight rather than length, and we cut to weight when that is how the job is planned.

Testing and Certification

Release documentation covers chemical analysis, tensile and yield strength, elongation, reduction of area, and hardness, with impact values where required.

Further inspection available:

• Dimensional verification across flats and diagonals, confirming true squareness
• Ultrasonic examination to ASTM A388 on forged sections
• Magnetic particle inspection to ASTM E1444, with attention to corner laps from drawing
• Grain size to ASTM E112 and decarburisation depth to ISO 3887
• Third-party inspection through TUV, SGS, BV or a nominated agency

Certification is issued to EN 10204 3.1, with 3.2 supplied on request.

Alloy Steel Square Bars Exporters in India

As alloy steel square bars exporters in India, we supply forging units, machine builders and distributors across the Middle East, Southeast Asia, Africa, Europe and the Americas.

Corner damage is the specific transit risk on this section. A bundle banded directly against an adjacent bundle arrives with crushed corners that must be dressed off, taking the section undersize. On a cold-drawn square destined for a visible or close-fitting application, that is a rejection rather than an inconvenience.

Bundles are separated by dunnage and strapped over protective packing on drawn material. Rust-preventive oil and VCI wrapping protect bright surfaces. Marking on the bundle tag and bar end carries grade, section, heat number, and the purchase order reference, and documentation is transmitted ahead of the consignment.

Why choose TSB Global LLP for Alloy Steel Square Bars?

TSB Global LLP is a sourcing company that helps businesses procure steel products by avoiding cumbersome dealings with various suppliers. By understanding the buyer's needs, we can procure the right materials from credible suppliers.

If you are looking for alloy steel square bar manufacturers, we are the leading sourcing company connecting you to them, absorbing the per-size minimums that put direct purchase out of reach.

For those customers who would like to avoid dealing with manufacturers directly, TSB Global LLP serves as a middleman between the customers and reliable manufacturers in sourcing.

Need quality Alloy Steel Square Bars? Get in Touch with TSB Global LLP Today.

About This Page

Section property comparisons given here are approximate figures for orientation and vary with exact geometry, corner radius, and loading condition; they are not a substitute for structural calculation. Property values are typical guidance rather than certified data on delivered material. Availability of any particular section is confirmed at enquiry. Structural and torsional design should be verified by a qualified engineer.
