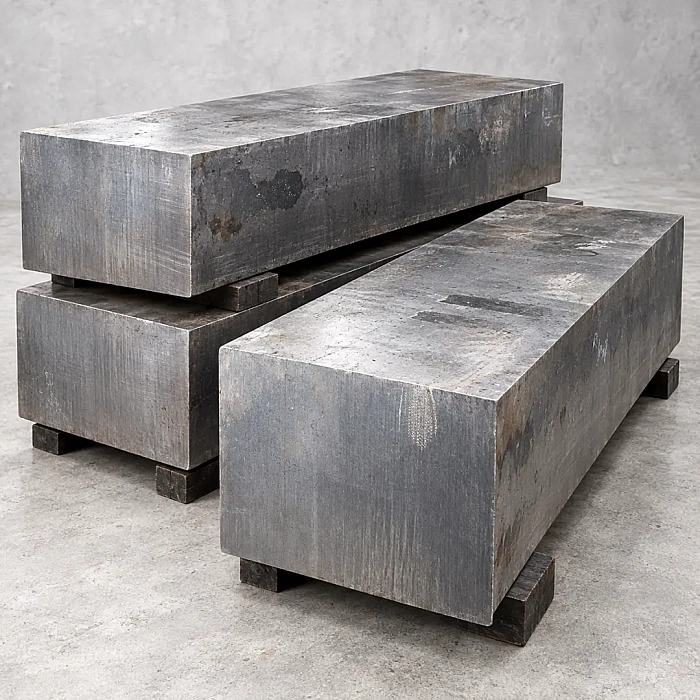

Die and Tool Steel Blocks Supplier in India

Applications

Block size and hardness conditions are chosen based on the tool's function. Here's where these blocks are put to work:

• Injection moulding – Cavity blocks, core blocks, bolsters, slide retainers, large insert stock
• Die casting –Die halves, holder blocks, cavity inserts, heavy platen components
• Forging dies – Die blocks for closed die forging, hammer dies, press tooling
• Blow moulding and extrusion – Mould bodies, die heads, heavy tooling components
• Heavy press tooling –Bolsters, die shoes, backing blocks, structural tool components
• Rubber and compression moulding – Platens, cavity blocks, heated tool components

Why Blocks Must Be Forged

At block sizes the question is not whether forging improves the material. It is whether the material is usable at all without it. An ingot solidifies from the outside inward. The last metal to freeze sits at the centre, carrying the concentrated segregation, porosity and shrinkage cavity that solidification pushes ahead of it. In a small bar that centre gets machined away. In a block 500 mm thick, the centre is exactly where the mould cavity will be cut.

Forging closes that porosity through mechanical work. Repeated upsetting and drawing under a press consolidates the centreline, breaks up the coarse cast structure and refines the grain. How much improvement you get depends on how much work was applied, expressed as forging reduction ratio.

For mould and die blocks we work to a minimum of 4:1, higher than general engineering practice, because the cavity is machined into the region that benefits most. The achieved ratio is recorded and certified on every block.

Why Most Mould Blocks Now Arrive Pre-Hardened

The most significant commercial development in mould steel is that most blocks are now supplied pre-hardened, and it changes the economics of tool building entirely.

The conventional sequence runs: machine soft, harden, then grind and polish to correct the movement hardening caused. On a large block that hardening step is a serious risk. It may distort, requiring extensive corrective work. It may crack, destroying everything invested in it. And it occupies furnace capacity for days on a section that size.

Pre-hardened blocks arrive at 28 to 34 HRC, hard enough for most plastic moulding service and still soft enough to machine. The tool maker cuts the cavity, polishes it, and the tool is finished. No hardening, no distortion, no crack risk, no furnace time.

The trade-off is real but usually acceptable. Pre-hardened material will not reach the hardness of a fully hardened tool steel, so for high-volume moulding of abrasive filled plastics, or for die casting, a through-hardening grade is still specified and the hardening risk accepted.

Why Grade Selection for Blocks Differs from Bar

A surface hardness reading on a 500 mm block tells you very little about the centre, and this is where grade selection for blocks genuinely differs from bar.

Even in a deep-hardening grade, a heavy section cools slowly at its core regardless of quench severity, and hardness falls with depth. On a pre-hardened block the mill controls this through composition and treatment, but a variation always exists.

Why it matters at the bench:

• Machining behaviour changes with depth - A cavity cut deep into a block encounters material that may be several points softer than the surface, and feeds and speeds set on the surface will not be optimal deeper in
• Polishing is uneven where hardness varies – softer regions polish faster, producing a wavy surface that shows on every moulding
• Texturing amplifies - Chemical etching reproduces hardness and structural variation as visible differences across a cavity face
• We supply hardness surveys taken at multiple points across all faces, plus core verification by test piece, rather than a single convenient reading.

Size Range and Supply

Blocks are supplied cut to the tool maker's dimensions rather than in standard sizes, because a mould block is made for one tool and never for stock.

Ultrasonic Testing Is Not Optional

Every block we supply is ultrasonically examined, and the reasoning is economic as much as technical. A subsurface void or inclusion cluster does not announce itself. The tool maker machines down through sound material, reaches the defect at depth, and finds a cavity face that cannot be polished and cannot be repaired.For mould blocks the level is set with the cavity zone specifically in mind, since a small indication near an outer face may be irrelevant while the same indication at cavity depth is not.

Die and Tool Steel Blocks Stockists in India

The role played by Die and Tool Steel Blocks Stockists in India differs from stockholding in any other product, because a block is never a shelf item. Sizes are set by the tool, and no two tools are alike.

What we hold is forged block stock in common thicknesses and the widely specified mould grades, from which a block can be cut to a tool maker's dimensions quickly. That is the practical value: not that the exact block is waiting, but that the material to make it is, and the tool maker is not waiting on a forging schedule.

TSB Global LLP is a stockist and supplier. We do not operate a press, and we coordinate cutting, milling and inspection through qualified processors while taking responsibility for the delivered block.

• Forged stock held across common thicknesses in principal mould grades
• Blocks cut to the tool maker's dimensions rather than to standard sizes
• Milling all round and grinding arranged before dispatch
• Ultrasonic testing carried out before release, not after machining has started
• Full documentation with every block, including forging ratio and hardness survey
• Priority handling on blocks for tools already committed to a delivery date

Polishability and Surface Finish

For an injection mould, the cavity surface becomes the surface of every part the tool produces, so a defect in the steel is reproduced on hundreds of thousands of mouldings.

Polishability is governed almost entirely by cleanliness. Non-metallic inclusions intersecting the cavity surface open into pits during polishing, and once exposed they cannot be removed, only worked around. Vacuum-degassed and remelted material carries fewer inclusions and polishes to a higher standard, which is why optical and cosmetic tooling justifies the premium.

Practical guidance for buyers:

• Specify an inclusion rating rather than asking for polishable material
• Uniform hardness matters, since variation polishes at different rates and produces a wavy surface
• Low sulphur is required for polishing grades, even though higher sulphur improves machinability
• Discuss the intended finish at enquiry, since it determines both grade and melting route

Die and Tool Steel Blocks Exporters in India

As Die and Tool Steel Blocks Exporters in India, we supply mould makers and die casting tool builders across the Middle East, Southeast Asia, Africa and Europe.

Blocks are heavy, valuable and single-purpose, which makes handling damage the dominant risk. A milled face damaged in transit eats into the allowance the tool maker calculated, and on a block cut to size there is no spare material to recover from.

Blocks ship in purpose-built timber cases with the block secured against movement inside, and lifting points are identified so slings do not bear on milled faces. Milled and ground faces receive rust-preventive coating and VCI film, with desiccant inside the case on long tropical routes. Identification is stamped directly onto the block face, and the full test package including the ultrasonic report travels ahead of the shipment.

Why Choose Us

Catching a defect before machining starts, not after, is what a properly tested block guarantees. Here's how we make sure every block gets there:

• Ultrasonic Testing Before Release, Not After Machining Starts — every block scanned before it reaches your shop floor, not discovered the hard way
• Forging Ratio Certified, Not Assumed — a minimum 4:1 reduction ratio on mould and die blocks, recorded and documented on every block
• Hardness Surveys, Not a Single Reading — multiple points across all faces plus core verification, since a surface reading tells you little about the centre of a heavy section
• Cut to Your Tool's Dimensions — blocks sized for the job, not pulled from standard stock sizes that don't exist for this product
• Honest About What We Are — a stockist and supplier, not a press operator; we coordinate cutting, milling and inspection through qualified processors and take responsibility for what's delivered
• Priority Handling on Committed Deliveries — blocks for tools already tied to a delivery date get handled accordingly

Need the Right Die and Tool Steel Block for Your Tool?
Send us your section size, grade and forging requirement, and we'll confirm the right block before you order.

About This Page

Hardness ranges and allowance figures are typical values for guidance and vary with grade, section size and supplier practice. Ultrasonic acceptance levels should be agreed in writing before production against the specific application. Property data does not replace the certified test package supplied with an individual block.
