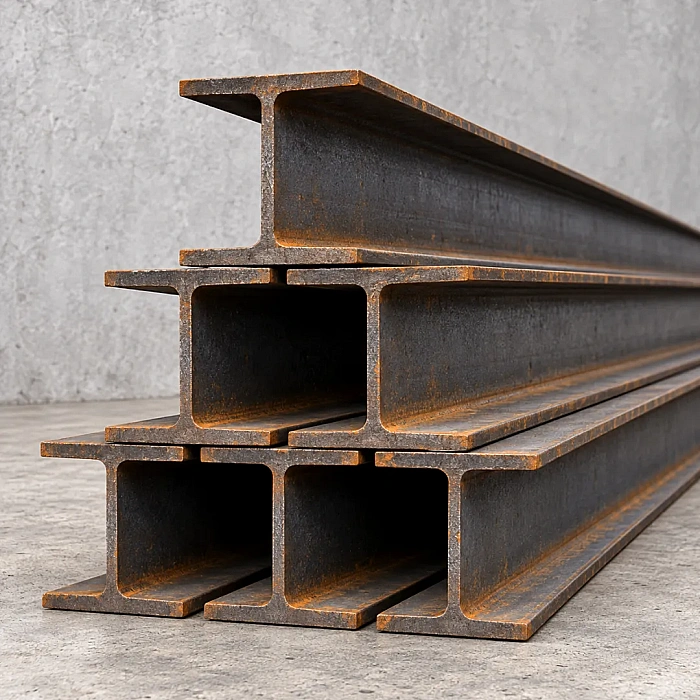

MS Structural Steel Supplier in India

Structural steel is bought by weight and designed by section property, and the gap between those two facts is where most material efficiency is won or lost.

The properties that matter:

The second moment of area, I, governs deflection. Doubling it halves the deflection under the same load. Section modulus, Z, governs bending strength. This is the figure to compare when checking whether a section can carry a moment. Radius of gyration, r, governs buckling resistance in compression. A column that is strong in bending can still buckle if this figure is low about the weak axis.

Look at the last row against the first. Weight roughly doubles from ISMB 200 to ISMB 300, but section modulus rises by more than two and a half times. Depth is disproportionately valuable in bending, which is why a deeper, lighter section usually beats a shallower, heavier one where headroom allows. Angles are the opposite case. They are inefficient in bending and excellent in direct tension, which is why they dominate bracing and are wrong for beams.

Structural Steel Connections: Bolted vs Welded

Members rarely fail. Connections do, and connection design absorbs more engineering time and more cost than section selection ever does. Bolted connections are the norm for site work. They need no power, no weather protection and no skilled welder on a scaffold, and they can be inspected visually. The penalties are bolt holes that reduce net section and connection plates that add weight and cost.

Welded connections are stronger for a given size and cleaner in appearance, but they demand qualified welders, weather protection and non-destructive testing. Most economical structures weld in the shop and bolt on site.

Practical points that repeatedly cause trouble:

• Bolt hole clearance is not optional slack. It accommodates erection tolerance, and connections designed without allowing for it will not go together on site
• The net section governs tension members. A member sized on gross area and then drilled for connections may fail at the holes
• Prying action in end plate connections raises bolt tension well above the calculated figure and is routinely underestimated
• Weld access matters. A joint that cannot be reached by a welder in position is a detail failure; however, correct the calculation

Erection Tolerances and Structural Steel Fit-Up

Steel is fabricated in a shop to millimetres and erected on a site built to centimetres, and the difference has to go somewhere.

Rolled sections carry dimensional tolerance in depth, width, flange thickness and straightness. Fabrication adds cutting and drilling tolerance. Foundations carry their own tolerance on level and position. Stack these up and a connection detailed with no adjustment will not assemble.

Practical provisions:

• Slotted or oversize holes at selected connections, providing adjustment without compromising capacity
• Shim packs at base plates, absorbing foundation-level variation
• Adjustable holding-down bolt arrangements, since foundation bolts are rarely exactly where the drawing shows
• Site welding at a small number of chosen connections, deliberately used to absorb accumulated tolerance

Getting this wrong is expensive in a way that shows up only at erection, when the crane is hired and the crew is waiting.

MS Structural Steel Sections and Size Range

Dimensional tolerance follows IS 808 and IS 1852. Cutting, drilling, notching and edge preparation are arranged before dispatch.

Applications of MS Structural Steel

• Building construction. Frames, columns, beams, purlins, bracing, connections
• Pre-engineered buildings. Portal frames, rafters, eaves beams, side rails
• Industrial plant. Equipment supports, platforms, walkways, pipe racks, gantries
• Infrastructure. Footbridges, canopy structures, access towers
• Material handling. Conveyor gantries, transfer towers, storage racking
• Power and process plant. Boiler support steel, cable racks, access structures

MS Structural Steel Stockists in India

Contractors rely on established MS structural steel stockists in India because construction programmes and mill rolling programmes do not align. A mill rolls a given section on a cycle. A fabricator needs it when the drawing is released and the erection sequence demands it, and once a site is mobilised, delay is measured in crane hire and idle crews rather than in tonnes.

Our stocking position covers the commonly specified beam, channel and angle sizes, with material identified by grade and heat number so a fabricator working under third-party inspection can demonstrate compliance without argument.

Sections are stored on level supports with adequate bearing points, since long beams on inadequate supports develop sag that must be corrected before erection.

TSB Global LLP holds and supplies rather than rolls.

• Common beam, channel and angle sizes held against project schedules
• Supply from single lengths through to full project tonnage
• Cutting to a customer list, reducing site handling and offcut
• Drilling, notching and edge preparation before dispatch
• Grade and heat identification retained through cutting
• Mill test certificates supplied with every consignment

MS Structural Steel Tonnage, Cutting and Wastage Control

Structural tonnage is estimated at tender and reconciled at delivery, and the two rarely match. Knowing why prevents unpleasant surprises.

Rolling tolerance. Actual weight varies within the permitted range, so a tonnage calculated from tables will differ from the weighbridge figure. IS 1852 permits a range, and on a large order the difference is real money.

Connection material. Plates, cleats, stiffeners, bolts and weld metal are consistently underestimated at the tender stage. On a typical framed structure they add somewhere between five and twelve percent to the member tonnage.

Offcut and wastage. Cutting lists rarely divide cleanly into stock lengths. Ordering cut to a schedule rather than in mill lengths recovers most of this.

Rounding up. A member needing 4.2 metres from a 6 metre stock length leaves 1.8 metres that may or may not find a use.

Testing and Certification

Structural steel is inspected more heavily than most products, because failure consequences are severe and public work is independently verified as a matter of course.

• Chemical analysis, tensile and yield strength, elongation
• Impact testing where the subgrade specifies it
• Carbon equivalent reported, supporting welding procedure qualification
• Dimensional verification against IS 808 and IS 1852
• Ultrasonic examination where lamination in the flange or web is a concern
• Third-party inspection through TUV, SGS, BV, RITES or a project-nominated agency

Certification is EN 10204 3.1, with 3.2 where the project specification or a statutory authority requires independent endorsement.

MS Structural Steel Exporters in India

As MS structural steel exporters in India, we supply contractors, fabrication yards and project developers across the Middle East, Africa, Southeast Asia and Europe. Sections are long, heavy and awkward, which makes handling the dominant transit risk. A beam lifted at a single point sags permanently, and a member arriving out of straight has to be corrected before erection, which on a live site is disruptive out of all proportion to the value of the section.

Lifting points are marked, bundles are made up to weights the receiving equipment can handle, and sections are supported at multiple bearing points during stowage. Grade identification is critical on export projects, because a consulting engineer inspecting delivered steel will reject material that cannot be traced to a certificate. Sections are marked at both ends with grade, heat number and project reference in a form that survives the voyage and site handling, and the document package is transmitted ahead of the consignment.

Why Choose TSB Global LLP for MS Structural Steel Supply?

Choosing structural steel is about more than price per tonne—it is about section efficiency, traceability, availability and delivery certainty. TSB Global LLP supplies MS structural steel sourced from leading Indian manufacturers, covering beams, columns, channels, angles and flats for demanding construction and industrial applications. We help contractors and fabricators secure the right sections, grades and tonnages against project schedules, with cutting, drilling, notching and edge preparation available before dispatch. Every consignment is supported by mill test certificates, grade and heat-number traceability, with third-party inspection arranged where required. From domestic project supply to exports across international markets, our focus remains simple: reliable material, accurate documentation and dependable project execution.

Need MS Structural Steel for Your Next Project?

Get the right sections, grades and quantities—backed by traceability, certification and dependable supply. Call us now.

About This Page

Section property figures are indicative values drawn from standard tables and should be verified against IS 808 for the specific section before use in design. Estimating allowances are typical ranges and vary considerably with structure type and connection complexity. Structural design, member selection and connection design must be carried out by a qualified structural engineer against the applicable code, not from general guidance.
