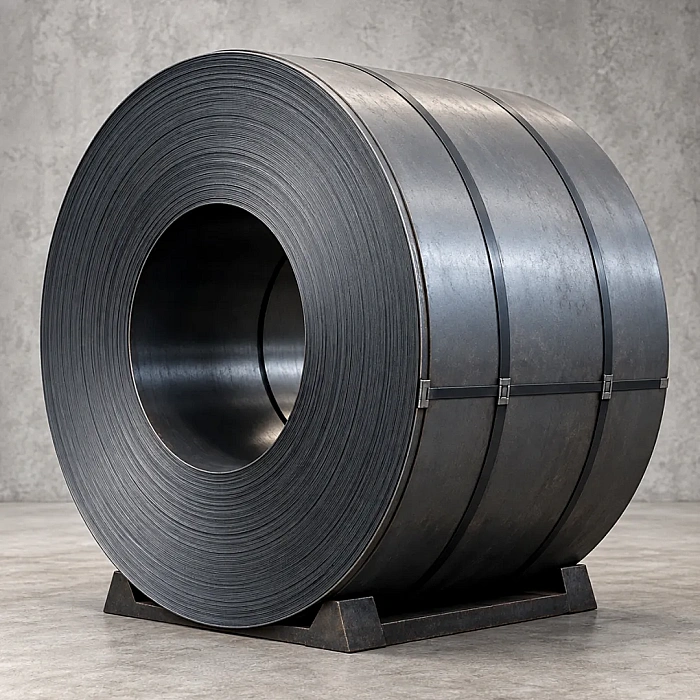

Carbon Steel Coil Supplier in India

Why Formability Matters More Than Strength in Press Shop Operations

This is the part of coil specification that matters most and is understood least outside the press trade.

Hot rolled coil to IS 1079 comes in formability classes designated O, D, DD and EDD: ordinary, drawing, deep drawing and extra deep drawing. The cold rolled coil to IS 513 uses a parallel ladder from CR1 to CR4. These do not describe strength. They describe how severely the material deforms before it splits.

What separates them metallurgically is carbon content, grain structure and control of interstitial elements. Lower carbon and finer, more uniform grain permit greater deformation. The effect at the press is dramatic: material adequate for a shallow bracket splits immediately in a deep drawn cup, and a shop receiving ordinary quality against a deep drawing order discovers it at the tool rather than at goods inward.

The Two Material Properties That Predict Drawing Performance

Elongation is a useful screen, but two other measures predict press performance far better and they are worth asking for on demanding work.

The strain hardening exponent – This describes how evenly strain is distributed as the material deforms. A high n value means strain spreads across the blank rather than concentrating in one spot, which delays necking and allows deeper draws. Deep drawing grades typically run around 0.21 to 0.24; ordinary quality is nearer 0.16.

The plastic strain ratio –  Also called the Lankford coefficient – measures resistance to thinning through the sheet thickness. A high r value means the material draws in from the flange rather than thinning in the wall, which is exactly what a deep-drawn cup requires. Values above 1.6 indicate good deep drawing capability.

Earring is the related phenomenon buyers notice as a scalloped edge on a drawn cup. It results from varying with direction in the sheet, and it is controlled through grain texture at the mill rather than through anything the press shop can do.

Hot-Rolled vs. Cold-Rolled Carbon Steel Coil

The distinction is more consequential than the names suggest.

Hot rolled coil is rolled above recrystallisation temperature. It reduces easily, making heavy gauges economical, but emerges with mill scale, wider thickness tolerance and rougher edge condition. It suits structural components, tube manufacture, chassis parts and anything painted after fabrication or hidden inside an assembly.

Cold-rolled coil is produced by further reducing pickled hot-rolled coil at room temperature. Cold work raises strength and hardness while cutting ductility, so the material is annealed afterwards to restore formability. The result is close thickness tolerance, a clean bright surface and consistent mechanical properties. Appliance panels, automotive skin components and visible painted parts are made from it.

Specifying 'cold rolled' where 'hot rolled' would serve is a common and expensive procurement error.

Size Range and Tolerance

Coil Geometry and Its Impact on Press Line Performance

A coil that is metallurgically correct can still stop a press line, and the causes are geometric rather than material.

• Coil set – Residual curvature from winding, which the straightener must remove. Heavy coil set on a thin gauge overloads the levelling rolls
• Crossbow – Curvature across the width rather than along the length, causing the blank to sit unevenly in the die
• Edge wave and centre buckle – Results of uneven thickness across the width, causing feeding problems routinely blamed on the press
• Telescoping – Wraps sliding sideways during handling, damaging edges and preventing clean mandrel mounting
• Coil weight against decoiler capacity – Determines changeover frequency, but heavier coils only pay if the handling equipment can take them

Applications of Carbon Steel Coil

• Automotive stamping – Body panels, brackets, reinforcements, seat components, fuel system parts
• Appliance manufacture – Cabinet panels, drums, internal structure, pressed components
• Tube and pipe manufacture – ERW tube, conduit, structural hollow sections, furniture tubing
• Drum and container production – Barrel bodies, ends, closures, pail components
• Roll forming – Profiled sheeting, purlins, framing sections, shelving, storage systems
• General press work – Enclosures, panels, brackets, formed hardware

Carbon Steel Coil Stockists in India for Flexible Production Requirements

The service required from established Carbon Steel Coil Stockists in India differs entirely from the bar trade. A press shop is rarely short of a thickness. It is short of a width, because mills roll to standard widths, and a stamper needs coil slit to suit the blank layout that minimises scrap.

Slitting is therefore central. A coil slit to the right width for a given blank lifts material utilisation substantially, and on a high-volume job that improvement dwarfs any difference in coil rate. Heat and coil continuity matter as much, since changing grade or heat mid-run forces a press setup adjustment that on a short run costs more than the material.

TSB Global LLP is a stockist and supplier, not a rolling mill.

• Slitting to customer width, improving blank utilisation and reducing skeleton scrap
• Cut-to-length sheet where a press shop lacks decoiling capacity
• Coil weights matched to decoiler and crane capability rather than mill standard
• Heat continuity maintained within an order wherever tonnage permits
• Part-coil quantities released, removing the mill tonnage minimum
• Stored on saddles or on end, preserving winding geometry

Testing and Certification of Carbon Steel Coil

The coil is released against chemical analysis, tensile and yield strength, elongation and hardness. For formable material, elongation, n value and r value carry far more practical meaning than tensile strength.

• Cupping test to IS 10175 or Erichsen test, giving a direct measure of drawability
• Bend testing to a nominated radius
• Grain size to ASTM E112, since coarse grain produces orange peel on formed panels
• Surface inspection for rolled-in scale, slivers and edge defects
• Thickness profile measurement across the width
• Third-party inspection through TUV, SGS, BV or a nominated agency

• Certification is issued to EN 10204 3.1, with 3.2 arranged where required.

Carbon Steel Coil Exporters in India for Global Industrial Supply

As Carbon Steel Coil Exporters in India, we supply stampers, tube mills and roll forming operations across the Gulf, Southeast Asia, Africa, Europe and the Americas.

Two risks dominate coil export and both are avoidable. A coil that slackens across a long voyage telescopes, damages its own edges and will not mount cleanly on a mandrel, so circumferential and diametric bindings are applied at multiple positions with tension set to hold the wrap without indenting the outer laps.

Corrosion is the more serious of the two, because the interior of a coil cannot be inspected on arrival. Cold rolled coil is oiled during the mill process and shipped with VCI protection and a moisture barrier wrap. Hot rolled coil is supplied pickled and oiled where a scale-free surface is wanted on receipt. Coil tags go on at two positions so identification survives handling.

Receiving and Inspecting Carbon Steel Coil

Coil problems are cheapest to catch on the receiving dock and most expensive to catch at the press. A short routine at goods inward pays for itself many times over.

• Check identification first – Confirm both tags are present and that grade, heat number, thickness, width and weight match the packing list. Record heat against coil number in your own system rather than relying on the certificate
• Inspect the outer wraps – Telescoping, crushed edges and indentation from binding tension are visible without unwrapping and all indicate handling problems in transit
• Take a hardness reading from the outer wrap – It takes minutes and flags a heat outside the expected range before the coil is committed
• Trial form before a long run on any coil from a new heat, particularly on severe drawing work

Documenting these checks builds the traceability record that automotive and safety-critical customers will eventually ask to see.

Why Choose Carbon Steel Coil for Pressing and Forming?

The choice of carbon steel coil also has a direct impact on the performance of forming, material usage and efficiency of press lines. TSB Global LLP can provide hot-rolled and cold-rolled coils that can be used in automotive stamping processes, tube making and roll forming, where sourcing and processing are tailored to the specific production needs of the buyer.

• Formability-oriented grades: There are ordinary, drawing, deep drawing and extra deep drawing grades of varying severity of forming.
• Hot and cold roll: Select either economical heavy-gauge material or a closer-tolerance, cleaner-surface cold roll coil.
• Customer-width slitting: Coil may be slit to desired widths to enhance blank utilisation and scrap minimisation.
• Adjustable quantities: Part-coil quantities can be made available, and this assists in overcoming the standard mill tonnage demands.
• Considerations of press line: Coil weights, internal diameters and geometry can be adjusted to decoiler and handling capabilities.
• Quality documentation: Chemical, mechanical, dimensional and formability-related tests can be organised based on EN 10204 certification.

Source Carbon Steel Coil for Pressing & Forming

If you need carbon steel coil for stamping in automotive or appliance parts, to make tubes, drums, roll forming or general press work, TSB Global LLP may assist in matching the material to your needs. Discuss with our team the best coil, slitting and certification options to use based on your needed grade, thickness, width, quantity and application.

Call now and get the best Carbon Steel Coils for your business.

About This Page

Elongation ranges and n and r values given here are common values used as a guideline and may differ among grades, producers and test directions. Formability is as much dependent on your tooling, lubrication and press setup as it is on the material and is not to be guessed by published data but should be verified by trial on the delivered coil.
